Voltage & Current

MYP Science Year 5 - A check for understanding if students can find unknown voltages and currents in a circuit with resistors in parallel and series connections.

Science

13 plays

11 questions

Isabelle

•almost 4 years ago

Question 1

Numerical Answer

10 points

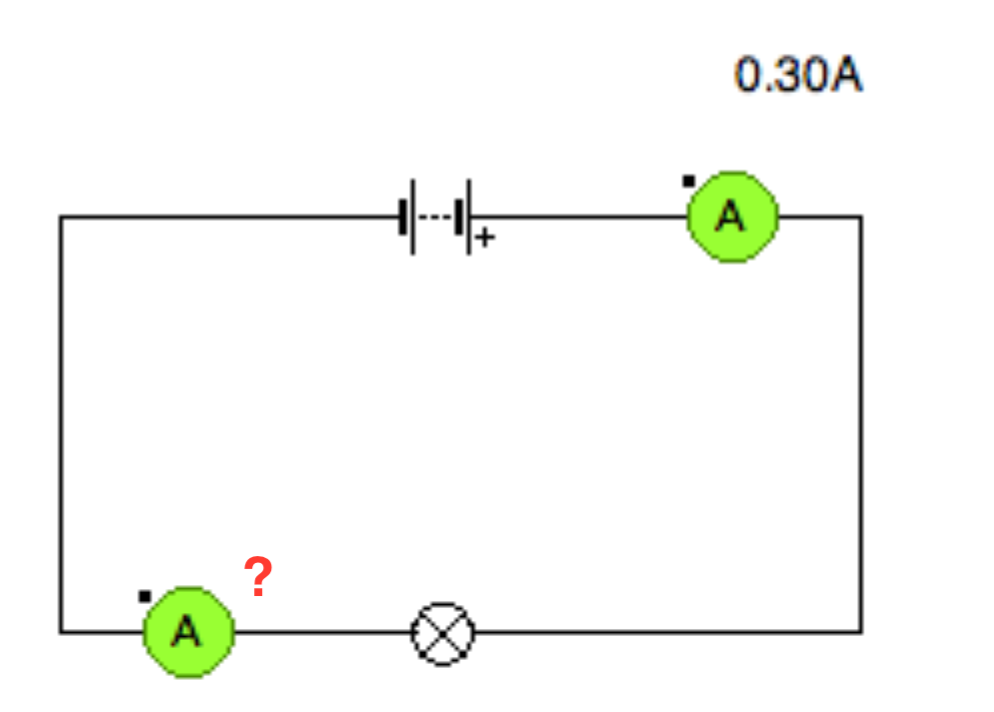

What would the reading on the second ammeter be? (Expressed in A)

Question 2

Multiple Response

10 points

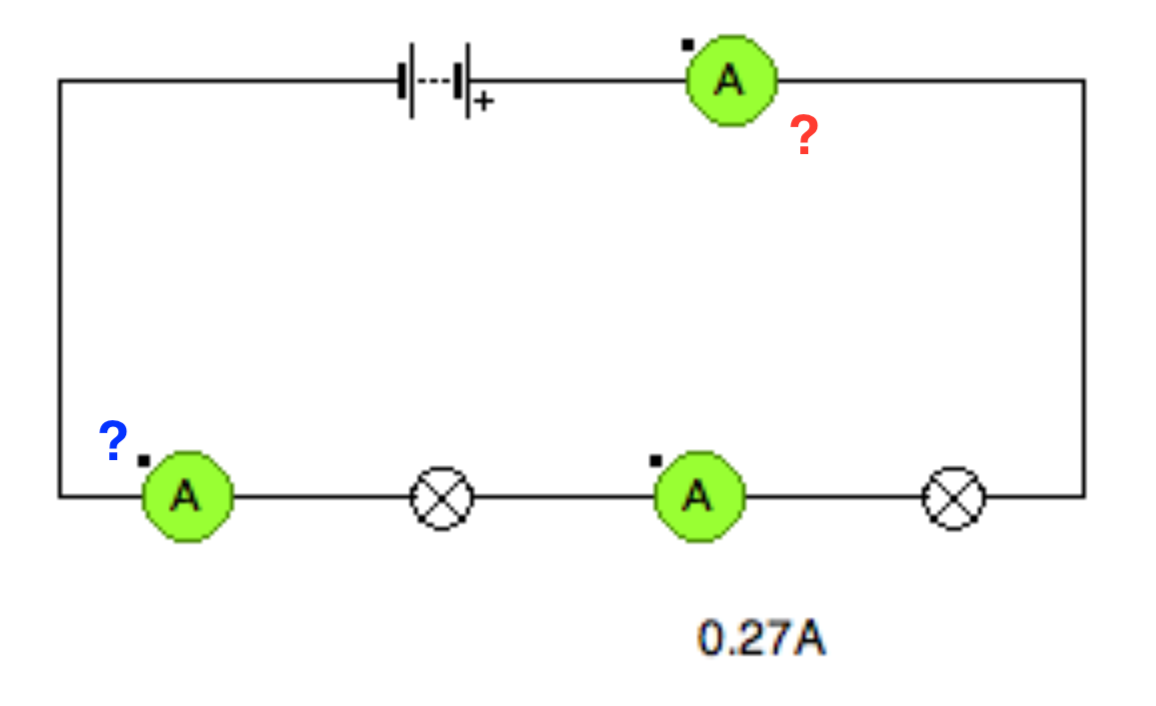

What would the reading on each ammeter be?

Both 0.27 A

The red one 0.27 A and the blue on 0 A

The red one 0 A and the blue one 0.27 A

You would need more info to answer this question.

Question 3

Numerical Answer

10 points

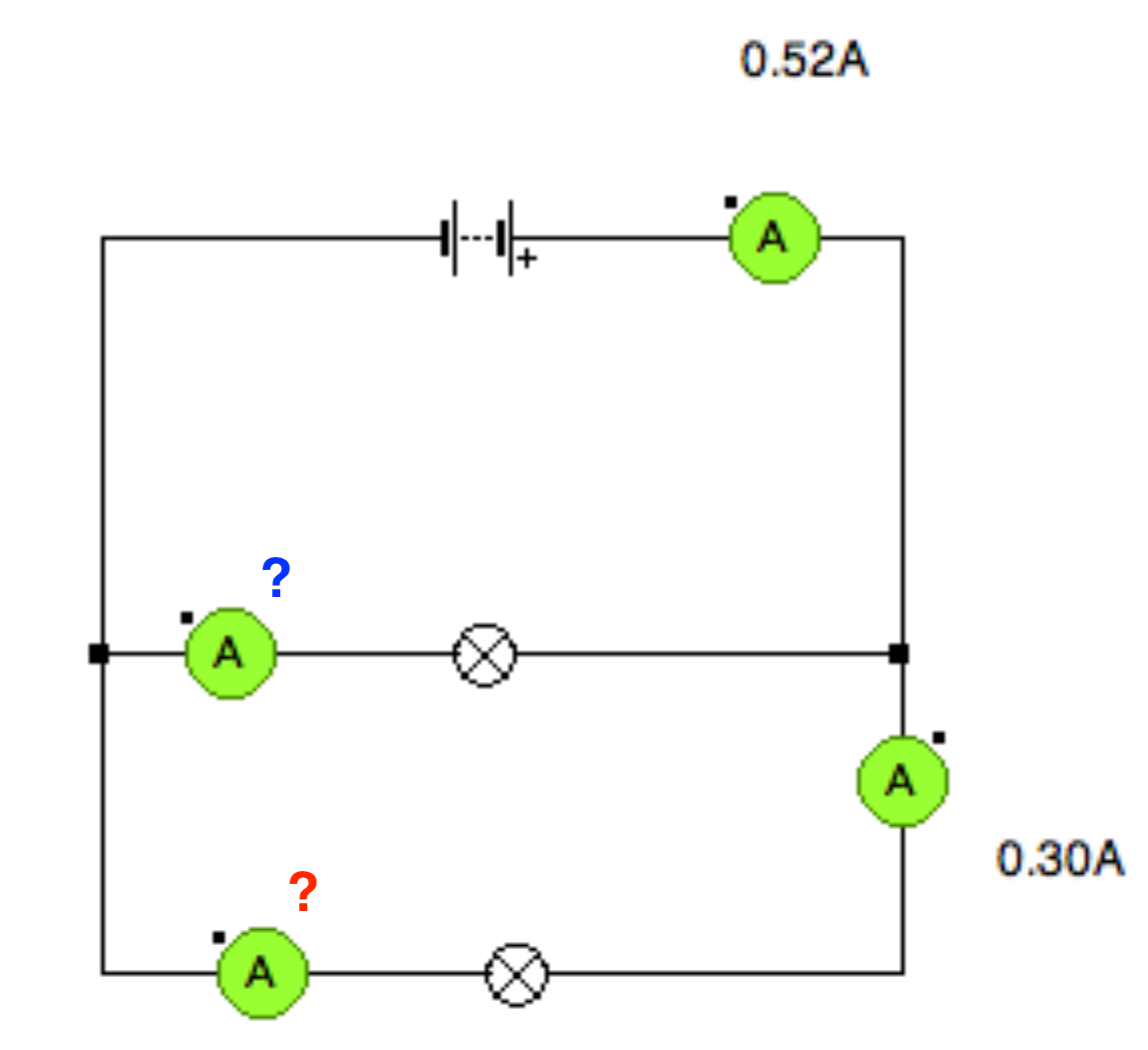

What would the reading on the red ammeter be?

Question 4

Numerical Answer

10 points

What would the reading on the blue ammeter be?

Question 5

Numerical Answer

10 points

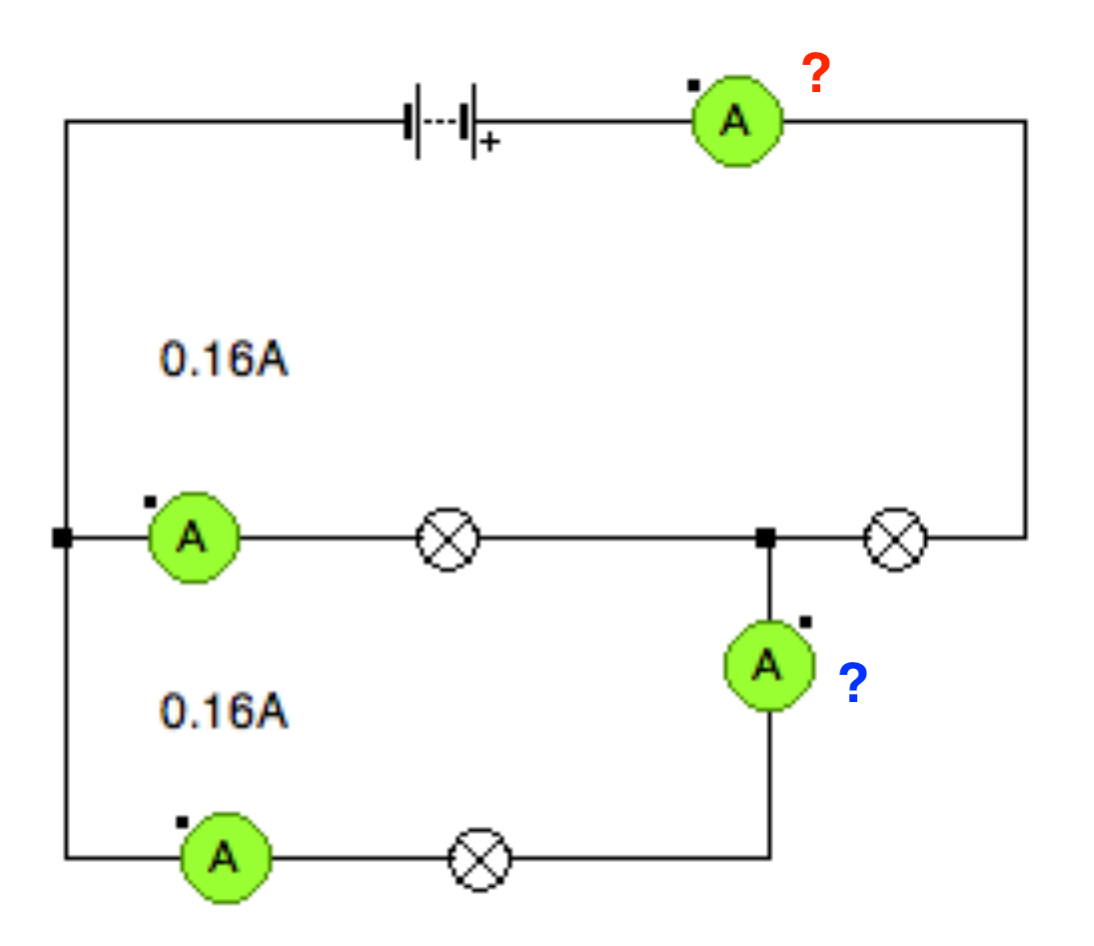

What would the reading on the blue ammeter be?

Question 6

Numerical Answer

10 points

What would the reading on the red ammeter be?

Question 7

Numerical Answer

10 points

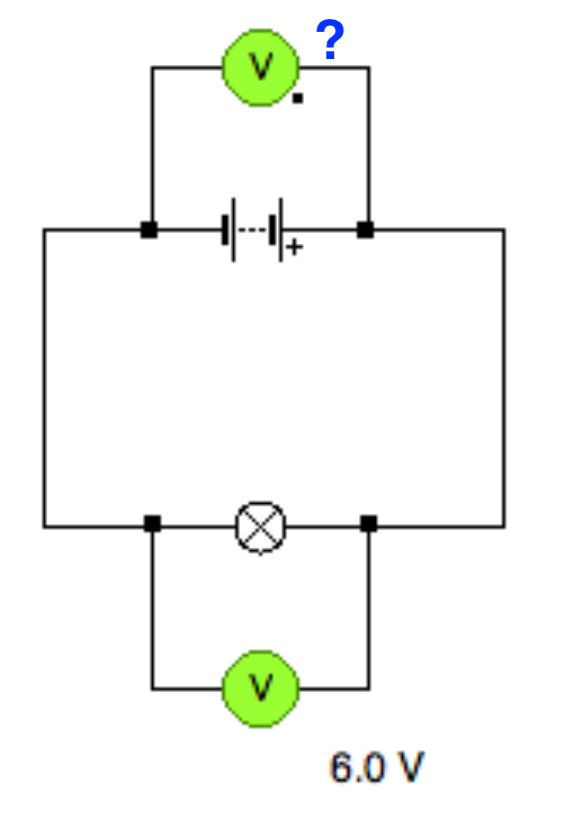

What would the reading of the potential difference (= voltage) over the battery (blue question mark) be?

Question 8

Multiple Choice

10 points

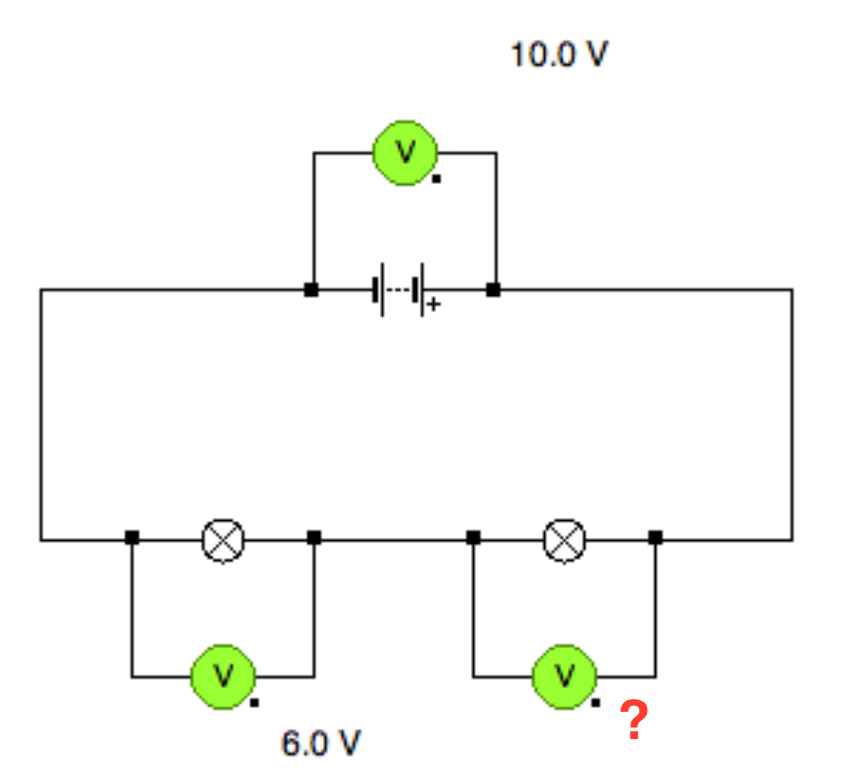

What would the reading be for each voltmeter?

Both 0 V

Blue would be 12.0 V and Red would also be 24.0 V

Both would be 3.0 V

Both would be 6.0 V

Question 9

Numerical Answer

10 points

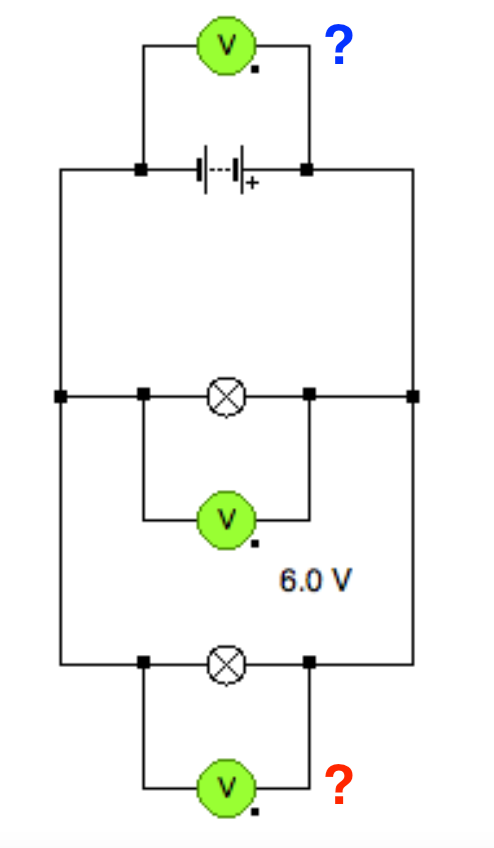

What would the reading of the potential difference (= voltage) over the battery (red question mark) be?

Question 10

Numerical Answer

10 points

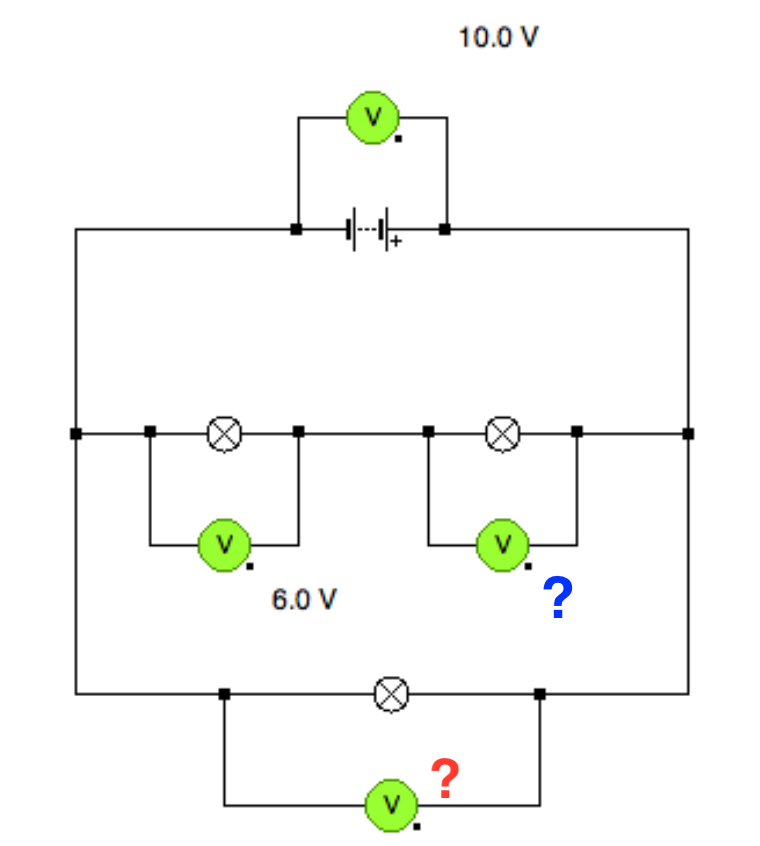

What would the reading be for the red voltmeter?

Question 11

Numerical Answer

10 points

What would the reading be for the blue voltmeter?
