Kirchhoffs laws LEVEL 3
How many stretching problems can you get
Other
12 plays
10 questions
Question 1
Numerical Answer
1 point

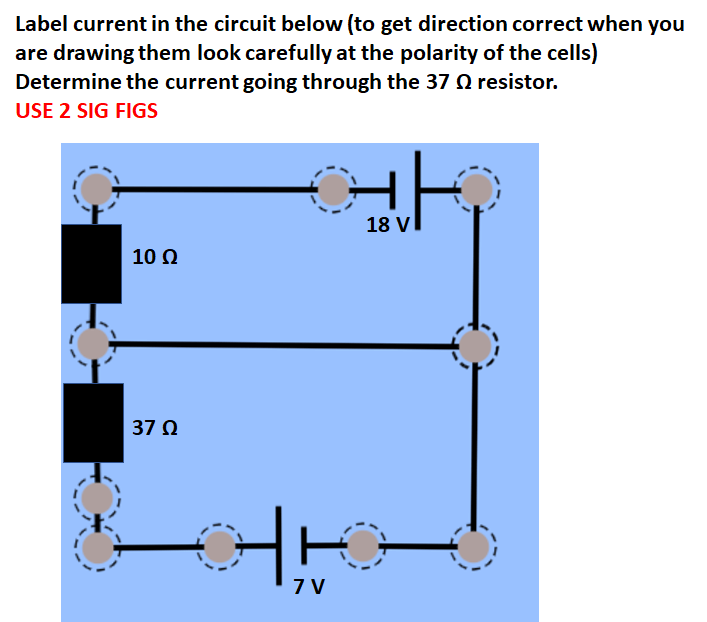

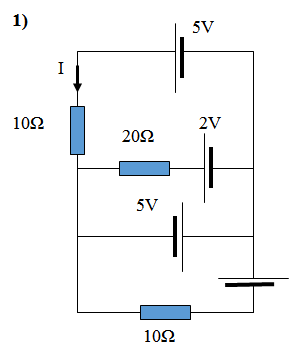

Find the labelled current. Do not input the units here
Question 2
Numerical Answer
1 point

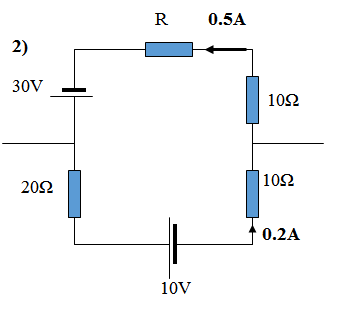

Determine the resistance in the circuit shown. Do not input units
Question 3
Numerical Answer
1 point
State the magnitude of I2 linked to the circuit below. In this case upwards is positive and down is negative. State the direction and magnitude to 2 sig figs.
Question 4
Numerical Answer
1 point

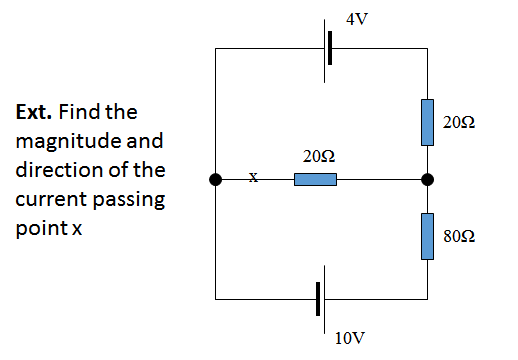

Determine the current passing the point X. In this case left is positive and right is negative. State the direction and magnitude to 2 sig figs.
Question 5
Short Answer
1 point

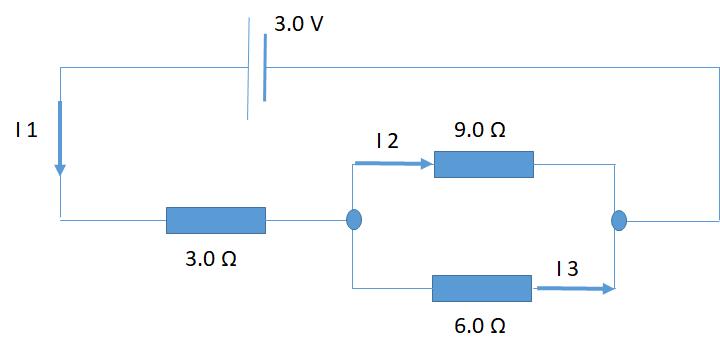

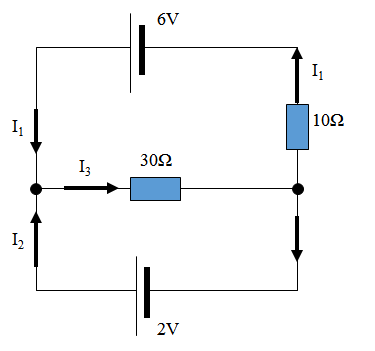

State your three answers for the current in the order of I1, I2, and I3. State all answers to 2 sig figs and leave a single space between each answer (do not add anything else between)

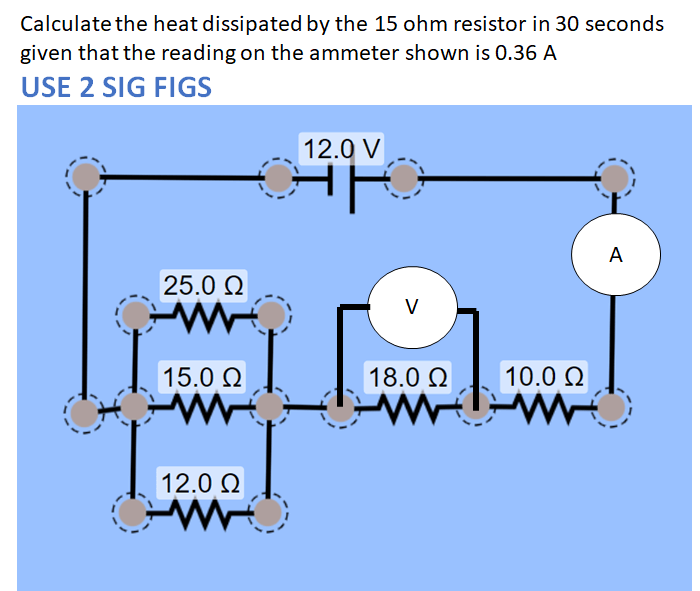

Question 6
Numerical Answer
10 points

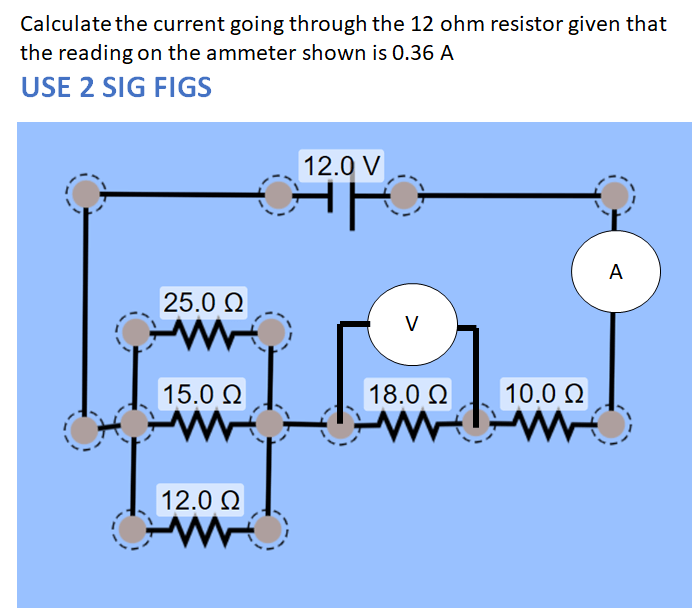

Question 7
Numerical Answer
10 points

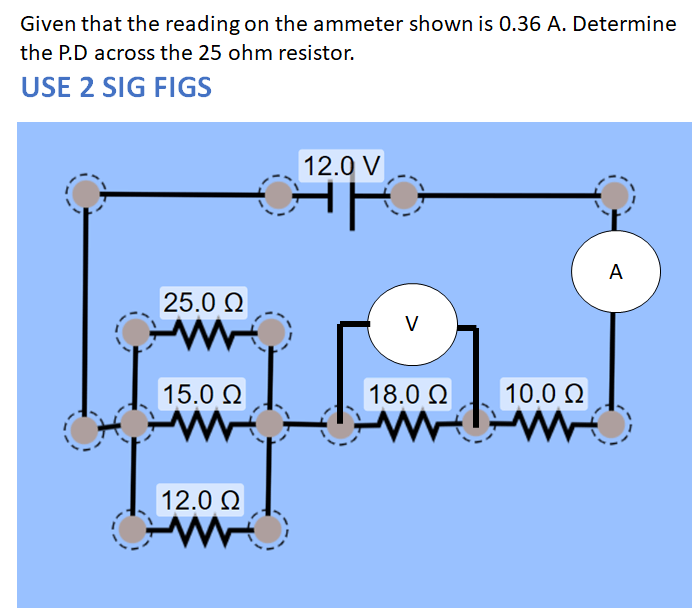

Question 8
Numerical Answer
10 points

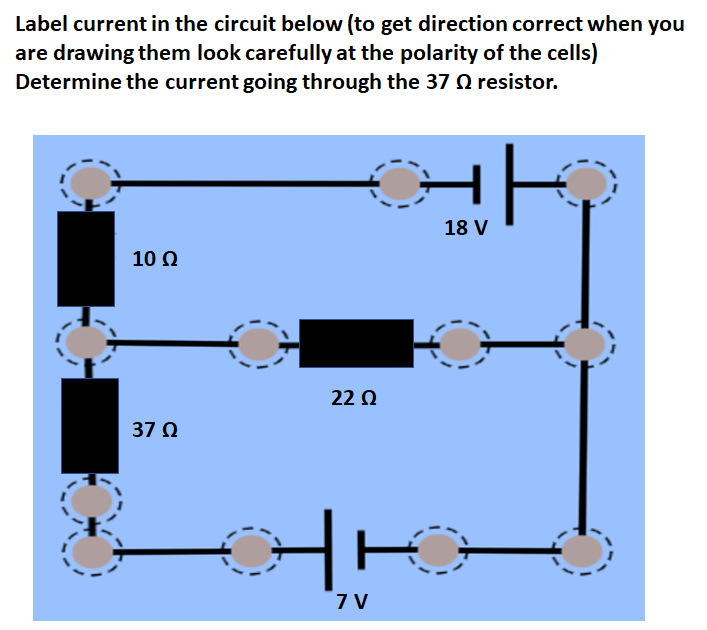

Question 9
Numerical Answer
10 points
Question 10
Numerical Answer
10 points
